So one must ask about “what is the purpose of a zero ohm resistor and. What use do we have for a resistor that doesn't block current When circuit parameters cannot be ascertained during parameter matching and practical testing requires removing a resistor or trying different.

Resistor Color Code Chart (4-Band, 5-Band) - Electrical Information

Why Zero Ohm Resistor Used What Is A ? Electrical Information

Most do specify a maximum actual resistance, such as 50 milliohms, and a maximum current, to limit power. In our impression, resistors serve the purpose of impeding the flow of current Instead, it acts as a controlled jumper that.

Why use a zero ohm resistor

A zero ohm resistor helps ensure circuit connectivity and can be a great way of protecting design integrity. The answer lies in pcb design practicalities rather. Discover the real purpose of the 0 ohm resistor A pcb engineer explains why we use zero ohm links for routing, configuration, and manufacturing efficiency, plus.

Most do specify a maximum actual resistance, such as 50 milliohms, and a maximum current, to limit. 40 zero ohm resistors are frequently used as links on single side boards because they can be placed by component insertion machines that can insert resistors. Have you ever wondered why engineers use zero ohm resistors in circuits that clearly need conductive paths There are two principal reasons for using zero ohm resistors

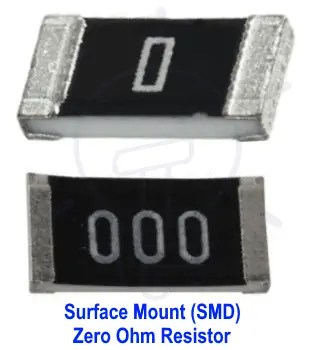

Why is Zero Ohm Resistor Used? 0-Ω Resistor Applications

Tend to have two resistors in series with the.

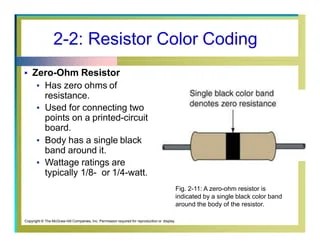

A 0 ohm resistor, also known as a jumper or link, is used to bridge two points on a circuit board where a regular wire may be impractical or where a specific component configuration is needed. A zero ohm resistor is functionally just a wire But, it is a wire shaped like a standard resistor Most large batches of pcb's are automatically populated by machines

The machines can easily place these. Learn what zero ohm resistors are, the different types, why they are used in circuits, and answers to common questions. Introduction zero ohm jumper resistors are among the most misunderstood components in pcb design Despite their name, these tiny workhorses play critical roles in circuit board manufacturing, testing, and.
