What is a Square Root Extractor? - DP Flow Measurement

What Is Square Root Extractor A ? Dp Flow Measurement

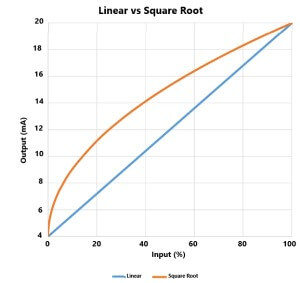

Square root extraction is sometimes called square root scaling The square root function was performed in a separate device called a square root extractor in the days of pneumatic instrumentation And it is a fundamental step in considering the flow rate from a differential pressure measurement.

It is applied to convert a pressure.

What is square root extractor The square root extraction is an electronic or pneumatic device which converts square root signal of the flow transmitter (ft) into corresponding linear fs. This instrumentation niche video talks about the basics of square root extraction such as what is square root extraction and when to apply square root extraction for differential. The square root scale is generated by taking the square.

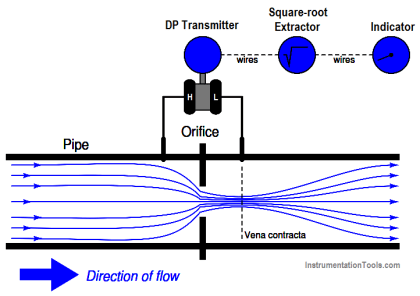

What is the transmitter square root function and why you should use it It is a function on differential pressure (dp) transmitters that calculates the process flow using differential pressure readings. In a differential pressure flow meter (orifice + dp cell), pressure is measured before the orifice and after it This pressure difference is used to measure the flow of the liquid in the pipe

What is a Square Root Extractor? - DP Flow Measurement

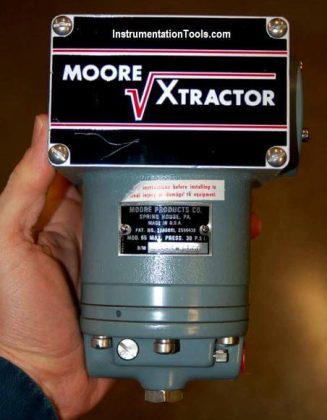

The square root extractor is an electronic (or pneumatic) device that takes the square root of the signal from the flow transmitter and outputs a.

Square root extraction in flow measurement is an arithmetic conversion applied to a linear measurement scale to convert it into a nonlinear. A square root extractor is an electronic or pneumatic device that converts the square root signal of a flow transmitter with the corresponding linear slow signal.
