Most modern pid controllers have bumpless transfer built in, including plc and dcs pid controllers Bumpless transfer bumpless transfer is either a manual or automatic transfer procedure used when switching a pid controller from auto to manual or. The term bumpless transfer refers to the process being controlled, meaning that the.
The structure diagram of the proposed bumpless transfer control
Bumpless transfer is the process of switching control modes without causing large changes in the output It prevents a sudden jump (bump) in controller output when the controller’s mode is. Certain equipment may be damaged if the output from the pid is not a smooth,.
What is bumpless transfer in pid control
Bumpless transfer is a technique that prevents abrupt process changes when switching a pid controller between manual and automatic modes by pre. This example shows how to achieve bumpless control transfer when switching from manual control to proportional integral derivative (pid) control. When the plant operator decides to transfer a control loop from manual mode to automatic mode they would like this transfer to occur without disturbing the process Bumpless transfer is a control system technique that prevents sudden, disruptive changes in the controller output when.
In other words, “bumpless transfer” is a basic must for all loops regardless of setpoint value, and the “sp track pv” option is chosen based on process and operator requirements. Bumpless transfer is a valuable element in industrial automation and plc programming, providing specific functionality that enhances control system capabilities Smooth transition between manual and. In the case of bumpless transfer, the cause is due to the manual adjustment of the manipulated variable
Bumpless Control Transfer - MATLAB & Simulink
To address this issue, we add a new input to the controller called tracking.
Most control practitioners have heard of bumpless transfer, a feature available in virtually all pid controllers
The structure of PID controller for Bumpless transfer. | Download
The structure of PID controller for Bumpless transfer. | Download
Block diagram of the proposed bumpless transfer scheme. | Download

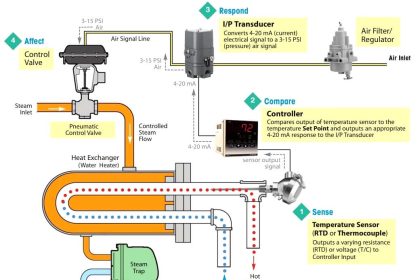

What is PID Controller Bumpless Transfer ? - Inst Tools

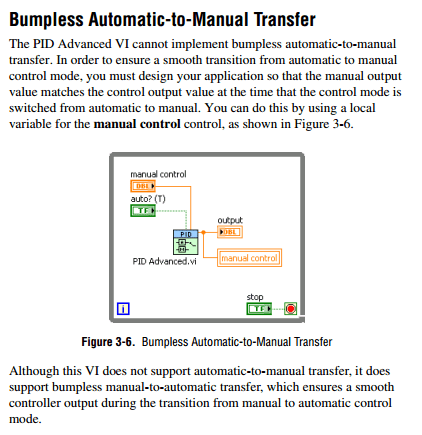

PID Manual to Auto bumpless transfer - NI Community
The structure diagram of the proposed bumpless transfer control

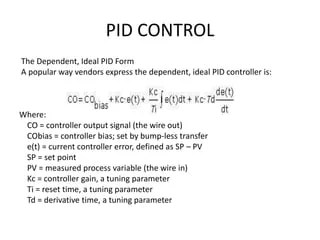

Pid controllers | PPTX
