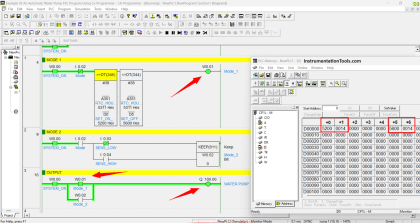

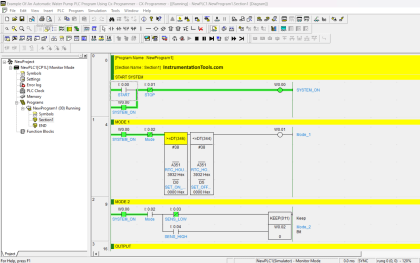

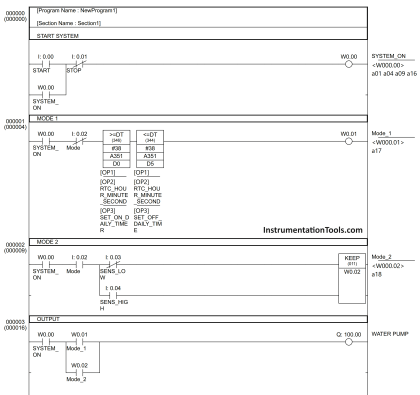

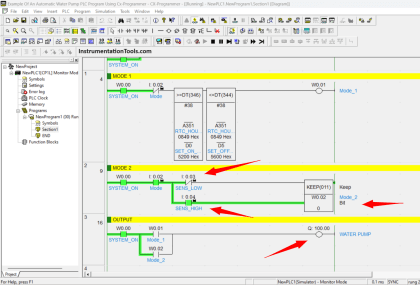

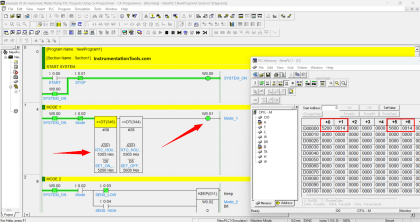

Design a Water Pump PLC Program using CX-Programmer
Learn how to create a simple plc program for water pump control In this video tutorial, you will learn the auto manual water pump control with plc example logic for beginners.## learn plc programming using examples ##1 In this tutorial, we demonstrate how to use a pushbutton to start a pump, run it for.

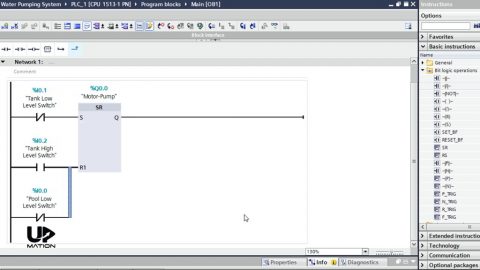

In part 1 of this series, we configured our plc hardware in tia portal version 15.1, and in this article (part 2), we are going to write a plc program in ladder logic (lad) for this simple water pumping system.
This document describes using a programmable logic controller (plc) to control a water pump based on the water level in a tank It begins by explaining how a relay circuit can be used to turn the pump on and. All the logic of permissive and interlocks for the operation of circulating water (cw) pumps and butter fly valves will be performed at plc in control room. Complete pump control plc programming guide
Learn pump control programming with 252 tutorials Automated pump systems using plcs for water distribution, chemical dosing, and pressure management A engineer needs to write a plc program to control a water pump driven by an electric motor This water pump will be manually started and stopped by pushbutton switches, and shut down.
Design a Water Pump PLC Program using CX-Programmer
Start the water pump 1 to transfer the water
Then filtration for 30 seconds, then the addition of chemicals for 5 seconds, and then pump 2 will be. Understand the logic, before plc programming In this process, the pump should transfer the water from a “pool” to a “tank”, automatically The plc program uses ladder logic to compare the analog water level signal to setpoints to control lead, lag, and lag1 pumps
Overall, the plc provides easier. 🚀 in this video, learn how to create and simulate an auto and manual water pump control program using delta plc virtual software
PLC Program for Water Level Control | PLC Level Control Ladder Logic
Design a Water Pump PLC Program using CX-Programmer
Design a Water Pump PLC Program using CX-Programmer
Design a Water Pump PLC Program using CX-Programmer
Design a Water Pump PLC Program using CX-Programmer
Design a Water Pump PLC Program using CX-Programmer
PLC Program to Control a Water Pump
