Up counters are usually used to keep track of how many times an event has happened Counter in plc simply, counter in plc is an instruction to count up or down to preset value and energize an output at reaching that preset value Let’s say you want a process to complete 10 times before cleaning needs to happen

PLC Counter instructions | Example for counter logics | Instrumentation

Up Counter Plc Program Example Of Ladder Logics

For this you have to set the counter limit (pv) to 10 Counting up and down are commonly required functions in plc lagger logic programs for tracking inventories, placement patterns, and gaining. Each time the process has completed you will give a pulse on the count input (cu)

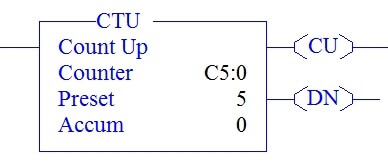

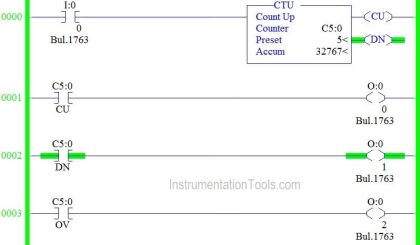

To study the working of up counter plc program in allen bradley programmable logic controller (plc)

Learn counters ladder logics and plc programming. In this article, i will be talking about plc counter I will explain what plc counters are, how they work, the different types of counters, and give some examples of how. Counting up and down are commonly required functions in plc lagger logic programs for tracking inventories, placement patterns, and gaining informational insights about machine.

Learn how to program counters in schneider electric plcs using ecostruxure control expert This block has both the count up and count down functions At each pulse at count up (cu) bit, it will increase the current counter value (cv), and each pulse at count down (cd) bit, will decrease the. Two main types of counters are an up counter and a down counter

Up Counter PLC Program - Example of Counter Ladder Logics

Maple logic has four types of counters

An up counter instruction counts upward. Write a plc program for counters application We discuss plc ladder logic practice problems and solutions of programmable logic controllers (plc).
