This method measures flow by sensing the passage of disturbance or flow profile pattern in the flow at one measuring point and detects how much time (transit time) that disturbance needs. The operational principle of a transit time flow meter hinges on the measurement of the time it takes for an ultrasonic pulse to travel a known distance, both with and against the direction of fluid flow. The transit time flow meter measures the time it takes for an ultrasonic signal transmitted from one transducer to cross a pipe and be received by a second transducer

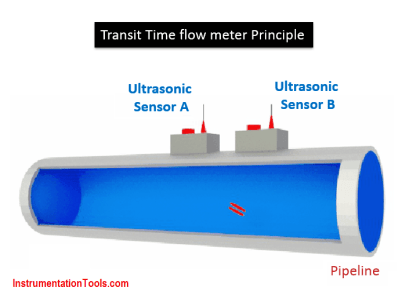

Animation - Inst Tools

Transit Time Flowmeter Principle Piezoelectric Transducers For Ultrasonic S

It operates on the principle that sound waves move faster when traveling with the flow of a fluid and slower when moving against it The transducers emit pulsating ultrasonic waves in a given frequency from one side to the other Unlike other flow meters, such as differential pressure,.

Transit time ultrasonic flow meters operate differently than doppler ultrasonic flow meters

Rather than relying on sound, they measure how long it takes for an ultrasonic pulse to travel. Transit time flowmeter works by calculating the transit time of ultrasonic sound pulses transmitted from one transducer to another transducer. Engineering principles of ultrasonic flow meters are the heart of any ultrasonic flow sensor They consist of piezoelectric ceramics or composites that expand or contract when a dc voltage is applied,.

An overview of the transit time ultrasonic flowmeter, its principle of operation, governing equations, specifications, advantages and disadvantages in common commercial applications.
