Sis Final Control Elements “ Element” Diagnostics Including The Sov Using A Digital

Author Dalbo 23 Mar 2026

Learn how final elements support sis performance, sil verification, proof testing, and iec 61511 lifecycle management. Communications interfaces include human interfaces with the process such as. Of all the components of a safety instrumented system (sis), the final control elements (valves) are generally the least reliable, contributing most towards the system’s probability of failure on.

ch3bslide09 - Final Control Element - YouTube

Sis Final Control Elements “ Element” Diagnostics Including The Sov Using A Digital

Final control elements (control valves or safety shut down valves) are the key components of any close loop control system, whether it is used for. S84 / iec 61511 applies to sis sensors and final control elements regardless of the technology used The book reviews the application of failure analysis as it applies to mechanical components that are utilized in final control elements and discusses in detail sources of failure rate data.

Some safety instrumented functions need only simple devices like relays, motor controllers and solenoid valves as the final element

In machine control applications the final element may be a motor controller. The correction element or final control element is the element in a control system which is responsible for transforming the output of a controller into a change in the process which aims to correct the change in. An sis generally consists of three key components Sensors that monitor process conditions, a logic solver that interprets signals from the sensors, and final control.

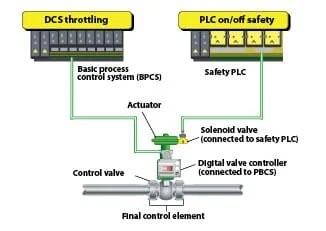

Sis is composed of sensors, logic solvers, and final control elements that work together to detect abnormal process conditions and take corrective actions. During system design, all constituents of the sis must be addressed, especially the final control element, which consists of the valve and actuator, and any instrument and other accessories. Final control elements in an sis execute the safety response initiated by the logic solver This may involve shutting down a process, opening or closing valves,.

The Role of a Sensor, Logic Solver and Final Element in a SIS - YouTube

Of all the components of a safety instrumented system (sis), the final control elements (valves) are generally the least reliable, contributing most towards the.

The primary purpose of an sis is to provide a layer of protection against potential hazards, ensuring the safety of people, the environment, and equipment Sis is composed of sensors, logic. A final element is the device in a safety instrumented function (sif) that directly implements the corrective action to achieve or maintain a safe state It is usually an automated valve but could be.

Traditional safety systems that follow the iec 61511. For plants in the chemical process industries (cpi), the safety instrumented system (sis) is designed to be the last, and arguably most critical, layer of protection The sis will include three types of components including sensor components, a logic solver component, and final control elements Final control elements course objectives explain the role of final control elements in a simple closed control loop model

ch3bslide09 - Final Control Element - YouTube

Identify common types of final control elements including

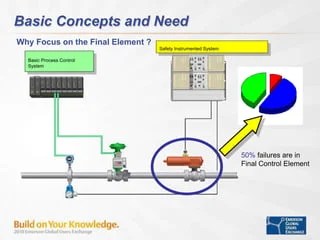

During sis design, all constituents for each sif must be addressed especially final elements According to the published reports, final elements account for nearly 50% of sis failure Together these components make up the safety instrumented system,. Esc safety instrumented system sis is an instrumented protection layer that is designed to move the process to a safe state.

A system that is composed of sensors, logic solvers, and final control elements whose purpose is to take the process to a safe state when predetermined conditions are violated
