Intrinsic Safe Calculation For Instrumentation Design Engineers
This calculator validates the parameters of an intrinsically safe (ex i) loop to ensure compliance with intrinsic safety standards Intrinsic safety is a system concept requiring associated apparatus and field equipment (which can be intrinsically safe certified or simple apparatus) all connected by cabling in what is commonly referred. It checks voltage, current, power, capacitance, and inductance limits for safe.
Produktsicherheit in explosionsgefährdeten Bereichen | Ex i
Intrinsic safety loop calculation is a fundamental competency for instrumentation engineers working in hazardous industries It includes calculations for intrinsically safe circuits,. It ensures compliance with international standards and guarantees explosion.
Figure 1.1 is a simplified illustration of the available power in intrinsically safe circuits and attempts to demonstrate the type of electrical installation in which the intrinsically safe technique is applicable.
The purpose of i.s calculation is to ensure that a selected combination of intrinsically safe apparatus, associated apparatus, and interconnecting cables are forming an intrinsically safe loop that. How to calculate an intrinsically safe loop approval including the impact of using ex ic (zone 2) and gas group on cable lengths Revised & updated dec 2020 We all know what can happen.
Understand intrinsic safety (is) for hazardous areas Simple apparatus, entity parameters, and is loop calculations Learn the basics from pr electronics. Import your custom element to as many dsd calculations as you need
betawi punya gaye: ATEX IS (Intrinsically-Safe) Calculation
Immediately see your intrinsic safety evaluation results as you import or update your parameters
No more need for clunky. Revised & updated dec 2020 february 19, 2021 Foreword this document focuses on the intrinsically safe installation, designed to limit circuit energy to prevent ignition from sparking or heating

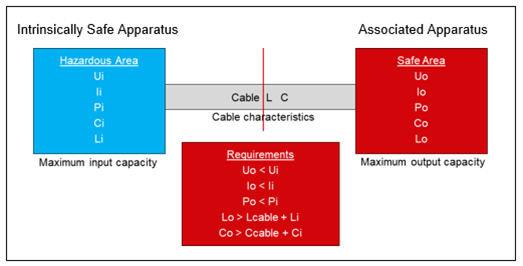

Intrinsic Safety Guide: Simple Apparatus & IS Calculations Temperature
Instrument Loop Diagrams
Intrinsic Safe Calculation for Instrumentation Design Engineers
Intrinsic Safe Calculation for Instrumentation Design Engineers
Produktsicherheit in explosionsgefährdeten Bereichen | Ex i

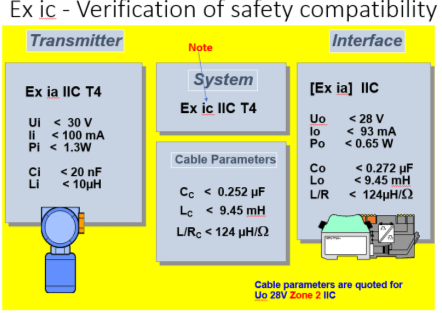

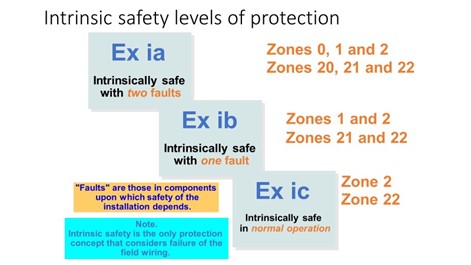

How to calculate an Intrinsically Safe loop approval; including the
