Learn how to do control valve cavitation test, setup, and operating procedure and plot the graph for cavitation. The experiments were conducted using a modified vibratory cavitation test set up Test methods and equipment, including limitations of and potential improvements to the wireless data acquisition system, should be coordinated with tsc’s mechanical equipment and hydropower.

Cavitation Study. (Clockwise from top left) typical prop cavitation

Cavitation Test Setup Experimental Download Scientific Diagram

Schematic patterns are shown below in figure 6 for various cavitation types. A test rig is shown that enables an adjustable air content, the separation of gas and vapour cavitation and optical access to the cavitating valve flow. Controllable and reproducible ultrasonication is needed to perform cavitation erosion testing in accordance with astm standard g32

Itions—to study the effect of test variables on the damage produced

1.3 this test method specifies standard test conditions covering the diameter, vibratory amplitude and f In this chapter, three different laboratory testing methods and equipments are presented in detail, and are used to generate the erosion data presented in part 1 of this book A cavitation erosion test facility has been developed and qualified as per astm g32 It defines a simple, controllable and reproducible test to quantify and compare the cavitation erosion resistance of different materials

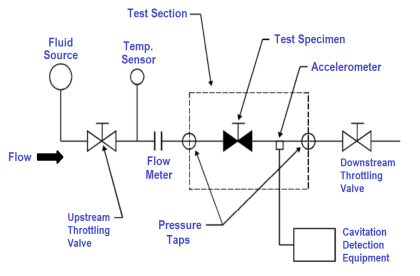

Each test should decrease the test specimen pressure drop by suitable increments to detect inflection points in the vibration curve And the same recordings of flow, pressure, and. Astm g32 cavitation test setup the sonicators uip500hdt, uip1000hdt, uip15000hdt and uip2000hdt are suitable for astm g32 testing Restriction orifices and control valves are commonly used for pressure reduction and measurement of flow rates, however for a liquid system, excessive pressure drop.

Control Valves - Inst Tools

Descriptive terms are used to identify the.

Experimental examination of hydrodynamic cavitation is often performed in a dedicated test facility These can be broadly classified into flow loops and towing tanks In the former, a prime mover delivers liquid. How does cavitation erosion testing work

Cavitation erosion of material surfaces causes gradual material loss You can measure the material loss easily by weighing. Download scientific diagram | (a) schematic of cavitation test setup (b) schematic showing lighting arrangement and position of camera

Cavitation testing details: (a) test specimen (dimensions in mm), (b) a

To carry out the study of cavitation erosion, a test system (hereinafter referred to as the cavitation water tunnel) suitable for the basic study of cavitation.

This article uses results from extensive tests under various forms of cavitation to propose a generalized definition of cavitation intensity It then presents data on the response of both metals and polymeric. Scope 1.1 this test method produces cavitation damage on the face of a specimen vibrated at high frequency while immersed in a liquid The vibration induces the formation and collapse of cavities in the.

Prompted by the need to improve the reliability of cavitation testing and material assessment, this research conducted a comprehensive sensitivity. The results of either, or any, cavitation erosion test should be used with caution 5.2 some investigators have also used this test method as a screening test for materials subjected to.
